PCB Manufacturing
Industry-leading technical capabilities and precision manufacturing processes for your most complex PCB designs.
Manufacturing Excellence
Production Process
Every board passes through 31 precision-controlled steps managed by seasoned quality experts — zero-defect, every time.
Laminate Shear
Baking
Cleaning
Photosensitive Coating
Exposure
Developing
Inner Copper Etching
AOI
Brown Oxide
Lay-up
Lamination
X-ray Target Drilling
Drilling
Immersion Copper
Panel Plating
Dry Film
Exposure
Developing
Image Inspection
Image Plating
Stripping & Etching
AOI
Silk Screen & Impedance
Exposure
Developing & Curing
Surface Finishing
Screen Legend
Shape Processing
E-test
FQC
Packaging
* Each step is strictly monitored by our quality control experts.
Process Capability
| Projects | Sample | Mass production |
|---|---|---|
| Layer | 1-40L | 1-32L |
| Thickness | 0.5-17.5mm | 0.5-17.5mm |
| Min Machine Via | 0.1mm | 0.1mm |
| Min Laser Via | 3mil | 3mil |
| HDI Range | 1+n+1, 2+n+2, 3+n+3 | 1+n+1, 2+n+2, 3+n+3 |
| Min. Line/Track space | 3/3mil | 3/3mil |
| Impedance control | +/-5% | +/-5% |
| Max Copper Thickness | 12oz | 12oz |
| Max thickness aperture ratio | 0.750694 | 0.750694 |
| Max Size | 650mm X 1130mm | 650mm X 1130mm |
| Material | FR4/Hi-Tg/Rogers/Halogen Free/RCC/PTFE/Nelco/Mixed Stack-Up Material | FR4/Hi-Tg/Rogers/Halogen Free/RCC/PTFE/Nelco/Mixed Stack-Up Material |
| Surface Finishing | HASL, HASL PB FREE, Immersion Gold/Tin/Silver, Gold Finger Plating, OSP, Immersion Gold+OSP | HASL, HASL PB FREE, Immersion Gold/Tin/Silver, Gold Finger Plating, OSP, Immersion Gold+OSP |
| Special Process | Buried blind vias, stepped grooves, metal substrates, embedded resistors, embedded capacitors, mixed stack, flex-rigid board, back drilling, stepped gold fingers, etc. |
| Layer | Mass production | Sample | Expedited |
|---|---|---|---|
| 2L | 7 days | 3 days | 24h |
| 4L | 10 days | 4 days | 2 days |
| 6L | 12 days | 6 days | 3 days |
| 8L | 12 days | 7 days | 4 days |
| 10L | 14 days | 10 days | 4 days |
| 12L | 14 days | 10 days | 5 days |
| 14L | 16 days | 12 days | 6 days |
| 16L | 16 days | 12 days | 6 days |
| 18L | 18 days | 14 days | 6 days |
| 20L | 18 days | 14 days | 10 days |
| 22L | 20 days | 14 days | 10 days |
| 24L | 20 days | 14 days | 10 days |
| 26L | 20 days | 14 days | 10 days |
| 28L | 20 days | 14 days | 10 days |
| 30L | 20 days | 14 days | 10 days |
| 32L | 20 days | 14 days | 10 days |
Equipment Pictures

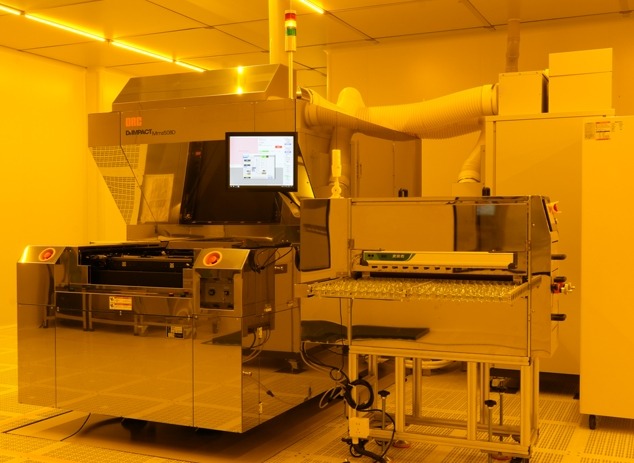

Orbotech LDI High-precision Exposure Machine

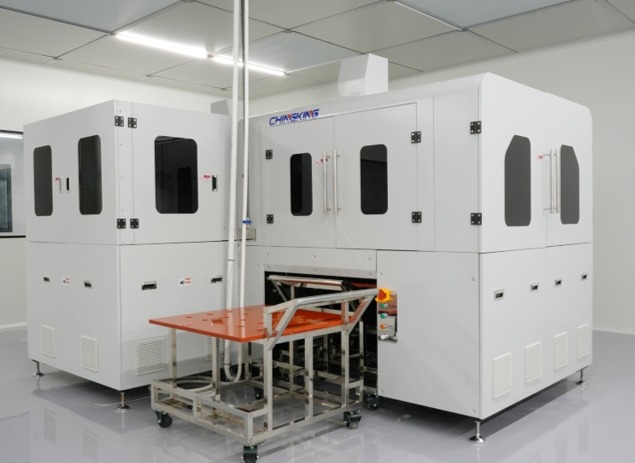

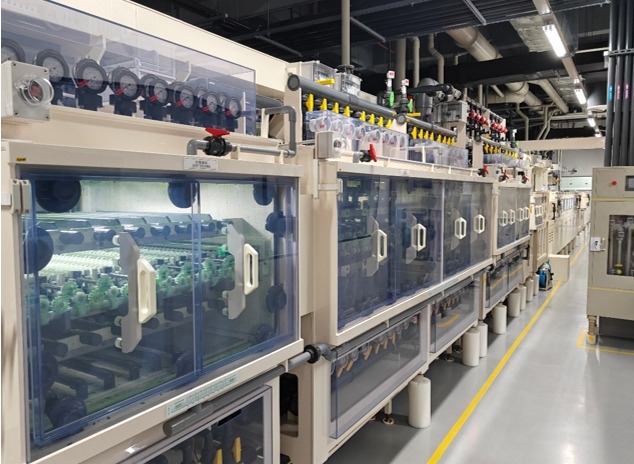

Vacuum Twin Fluid Etching Line

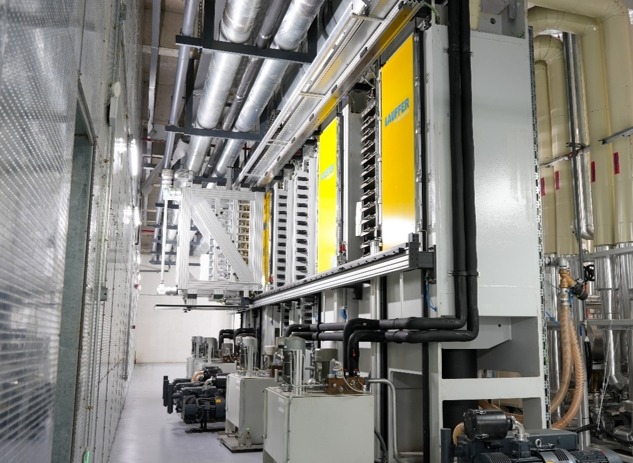

Germany Lauffer Vacuum high temperature pressing machine

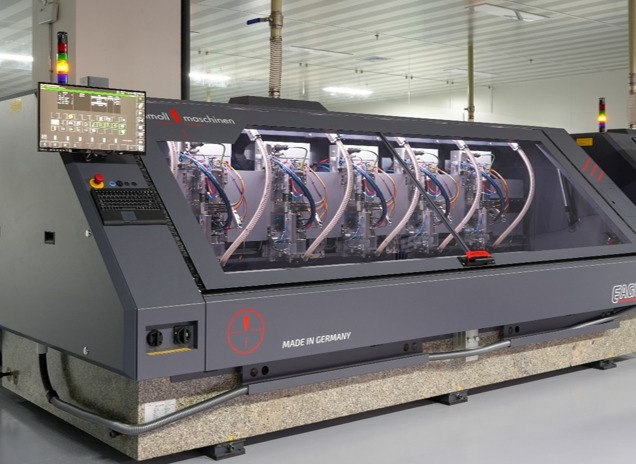

Germany Schmoll CCD Drilling Machine
CCD Electromagnetic Bonding Machine

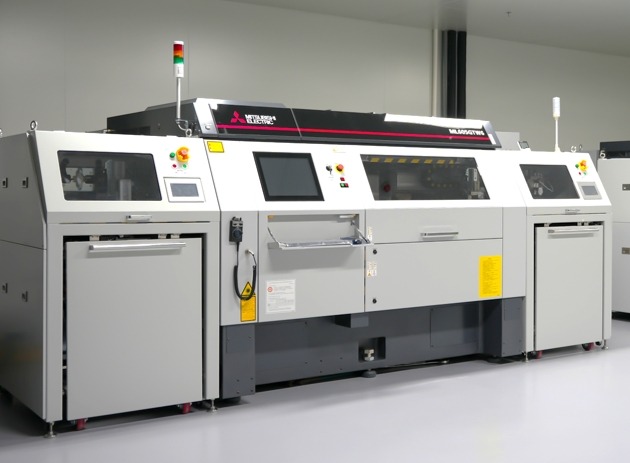

Mitsubishi Laser Drilling Machine

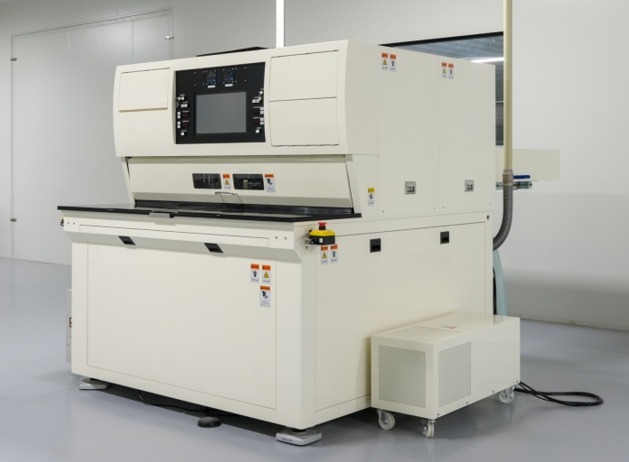

X-Ray Target Drilling machine

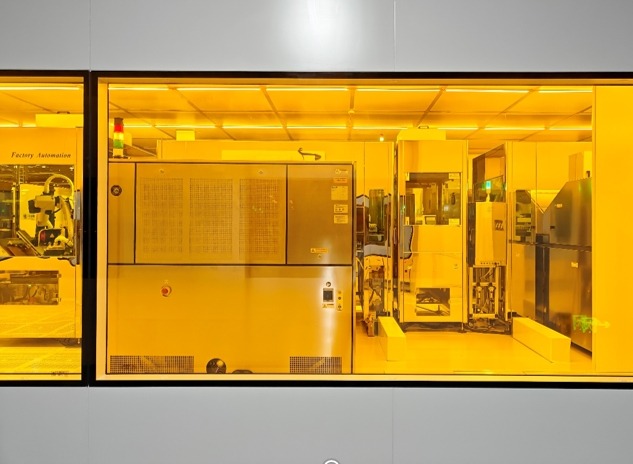

ORC Solder Mask Exposure Machine

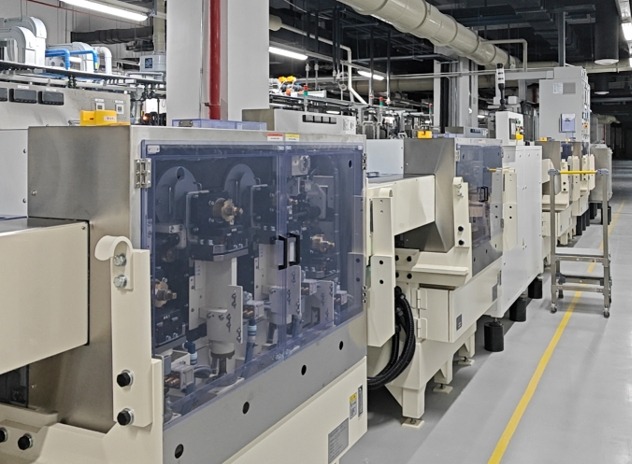

Sixteen-Axis Ceramic Grinding Machine

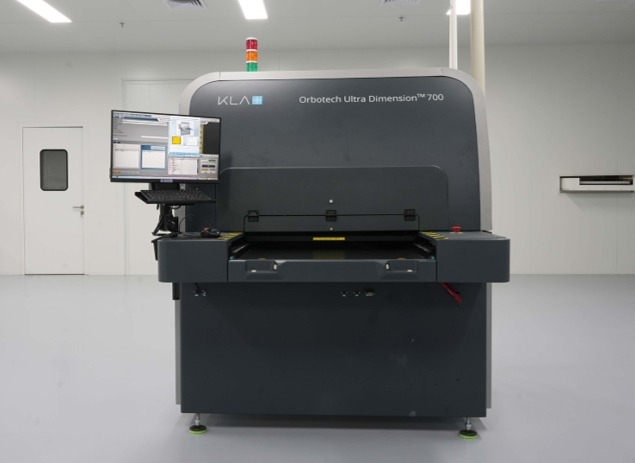

Orbotech AOI

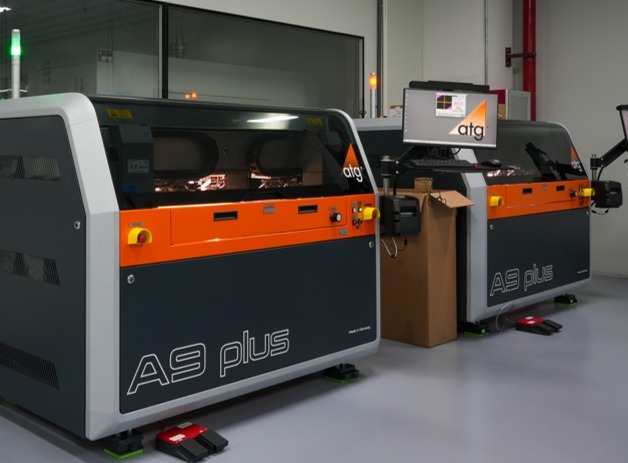

Germany ATG Flying Probe Testing machine

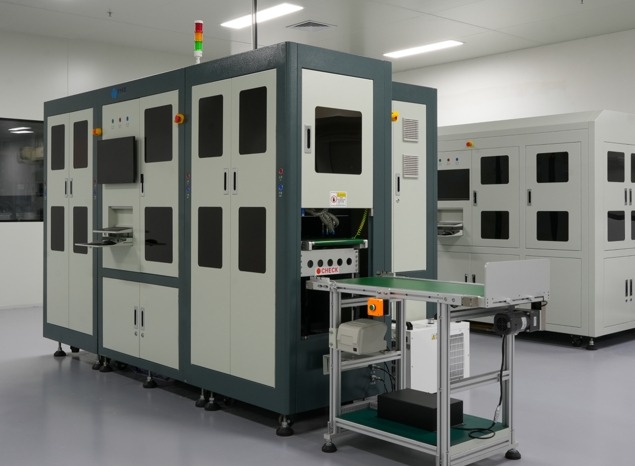

AVI
Quality Control
Materials Assurance
All our base materials are strictly tested by periodic sampling and internally followed IPC standards and customer measurements.
IQC Shipment
IQC shipment inspection is strictly performed prior to delivery with high standards of quality assurance.
Advanced Equipment
Equipped with advanced inspection equipment including Lux, AOI machine for the PCB and PCBA assembly inspection.
14 Years Power
14 years in the industry with stability and technical improvement enables us to provide superior and reliable PCB solutions.
Production Advantage
Quick Response
Professional technical team provides 24 hours online service to solve any technical issues efficiently.
Technical Support
Experienced engineers provide comprehensive technical support from design to mass production.
Quality Assurance
Strict quality control system with advanced testing equipment to ensure zero-defect shipment.
Multi-layered PCB Process
Equipped with advanced multi-layer production lines, specializing in high-density interconnection (HDI) PCBs.
Certification Support
UL, ISO9001, ISO14001, and IATF16949 certificates to meet global quality and management standards.
Fast Delivery
Optimized production and logistics systems ensure on-time delivery for both samples and mass orders.
